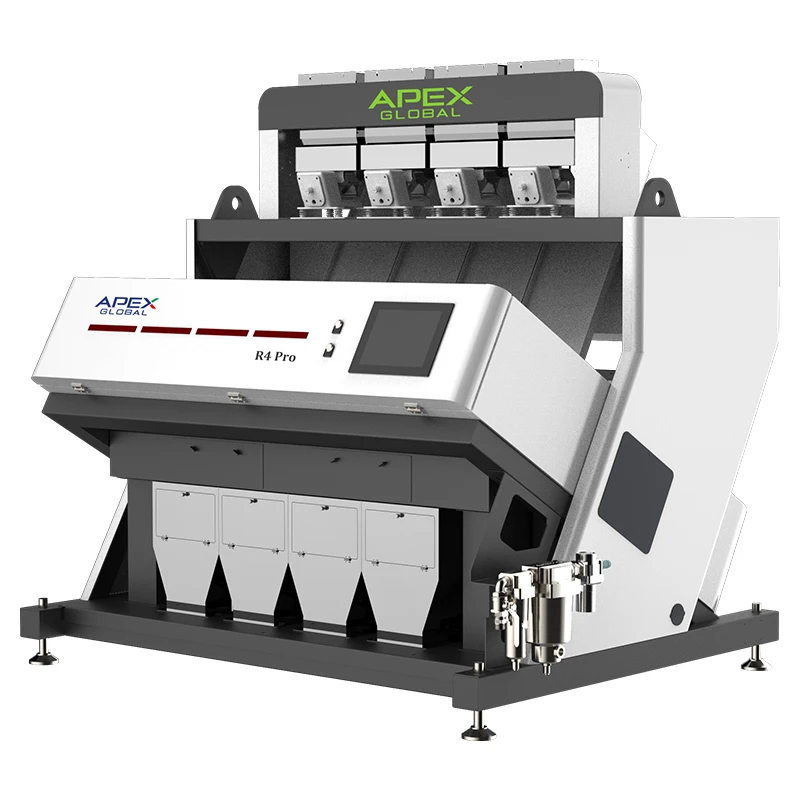

APEX Vision CCD Broken Rice Sorting Machine of High-Precision

APEX Rice Sorting Machine Features

The R Pro rice sorting machine is a high-precision upgraded model built on the basic R series platform, with comprehensive improvements in optical recognition precision, feeding running stability and overall structural durability. Targeted at medium-sized rice processing plants with stringent product quality requirements, it effectively fixes two major drawbacks of entry-level sorting equipment — missed defective grains and the loss of qualified rice kernels, delivering finer sorting accuracy, steadier running performance and higher finished rice yield during rice purification.

1. Upgraded high-sensitivity customized optical system

Equipped with high-resolution industrial CCD sensors and rice-specific optical path calibration, this model boasts superior color sensitivity and micro-detail recognition capability compared with the base R model. It can completely eliminate regular rice defects such as yellow grains and moldy kernels, while precisely capturing low-contrast flaws including lightly faded rice, immature uneven grains and faintly stained rice particles.

2. Anti-shake uniform feeding system to cut valid rice loss

The optimized anti-vibration feeding mechanism arranges rice grains in neat, steady single-layer falling status under long-term high-speed operation. It greatly lowers sorting deviation and accidental ejection of qualified rice, lifting the finished rice output rate and boosting the overall economic benefits of rice processing production lines.

3. Optional AI intelligent algorithm for hidden defect detection

It supports the installation of an upgraded rice-oriented AI deep learning module as an optional add-on. The intelligent algorithm identifies ultra-fine hidden defects that conventional optical sorting cannot capture, such as mild mold marks, surface oxidative discoloration and residual germ rice, satisfying the production standards of high-end refined rice processing.

4. Industrial-grade construction for sustained heavy-duty operation

Fitted with reinforced mechanical components and an optimized intelligent heat dissipation structure, the R Pro sorter supports round-the-clock heavy-load stable operation. It serves as an ideal precision upgrade solution for medium rice mills that focus on stable sorting quality, low material wastage and premium finished rice grades.

Striking a perfect balance between high-precision fine sorting performance and long-term operational reliability, the R Pro rice color sorter supports flexible AI function customization, fully matching the personalized refined production needs of standardized medium-scale rice milling lines.

Working Principle-How does it work?

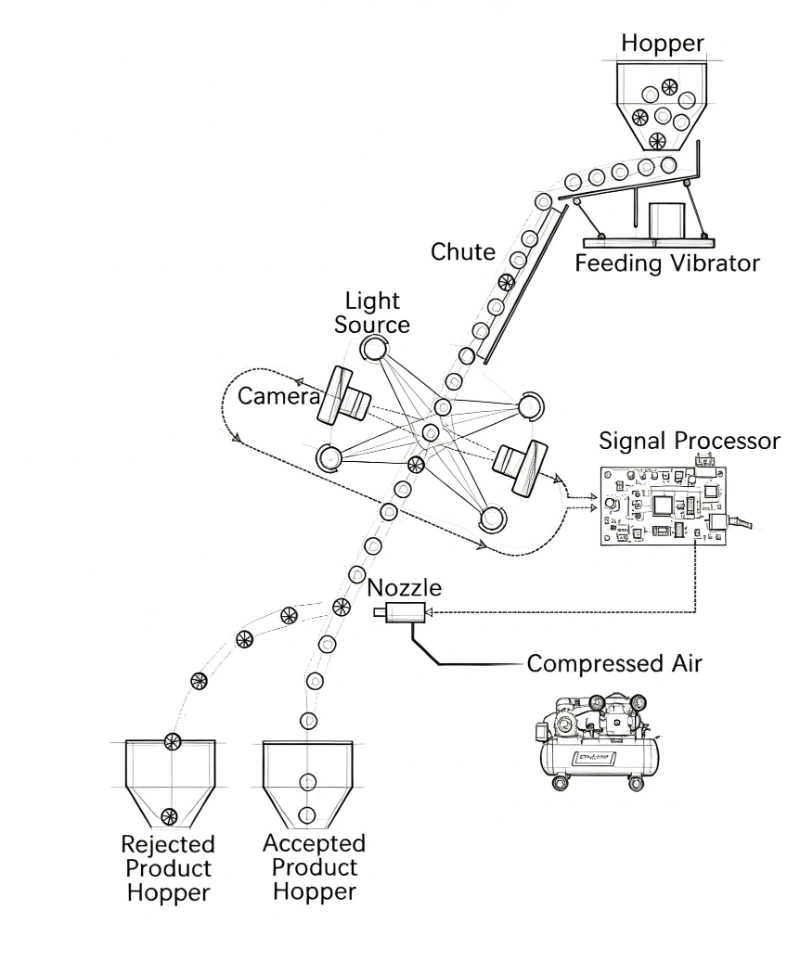

APEX Vertical Chute Type Rice Sorting Machine Diagram

Step-by-Step Sorting Workflow:

1. Unprocessed bulk rice blended with discolored kernels, moldy particles and foreign impurities is delivered into the dustproof sealed feeding hopper with optimized buffering structure.
2. The upgraded precision vibration distributor carries out layered homogenization on rice materials, enabling each rice grain to fall vertically in an independent single-particle track along the polished anti-adhesion chute without grain stacking or overlapping.
3. Matched high-resolution industrial CCD image sensors cooperate with constant-temperature stabilized light sources to capture subtle color differences, surface textures and tiny blemish features of every flowing rice grain in real time with higher sampling frequency.
4. The professional rice-dedicated data processing unit compares the captured multi-dimensional image information with the built-in multi-variety standard rice feature database, precisely locking low-contrast hidden defects as well as obvious deteriorated rice impurities.
5. Responsive high-speed solenoid jet nozzles instantly launch compressed air pulses to blow out all marked defective rice grains according to real-time analysis signals from the processor.
6. Fully purified intact qualified rice naturally drops into the finished product collection bin, while all rejected flawed grains are separately collected in the waste material hopper to finish the whole closed-loop high-precision rice sorting procedure.

Parameters of Rice Sorting Machine

Performance Comparison of Sorting Targets

R Pro Series Identifiable Rice Defects & Qualified Grain Reference Samples

Equipped with upgraded high-definition color CCD sensors and optimized image recognition algorithms, the R Pro rice sorting machine achieves precise identification and ejection against common rice defects.

This sample set displays standard high-quality finished rice together with typical problematic grains including yellow rice, chalky rice, black head contaminated rice and broken rice. The R Pro system distinguishes subtle color differences and surface texture features of these defective grains steadily during continuous production. It effectively purifies rice raw materials, unifies the color and appearance of final rice products, and helps medium-sized standardized rice mills stably raise finished rice grade and market selling price.

Patent Certifications

Independent R&D & Authoritative Patent Certifications

All core structural components and sorting technologies adopted by the R Pro rice sorting machine are backed by a complete set of national utility model patents. These patents cover key modules including vertical anti-block feeding mechanism, high-precision CCD optical imaging assembly, stable air nozzle ejection control system and intelligent algorithm operation unit.

Continuous independent research and development optimizes the overall operating stability, sorting accuracy and long service life of the R Pro series equipment. Standardized patented structural design guarantees stable running performance for medium-sized standardized rice milling factories, provides reliable technical quality certification for equipment procurement and factory access inspection, and greatly reduces equipment failure rates in long-term continuous grain sorting production.
